K780 - CarbonSteelBushing
| Kastaş No | d(f7) | D(H7) | L | S3 |
|---|---|---|---|---|
| K780-045 | 45 | 50 | 30 | 2,4825 |
| K780-050 | 50 | 55 | 30 | 2,4825 |
| K780-060 | 60 | 65 | 20 | 2,4825 |
| K780-060/1 | 60 | 65 | 30 | 2,4825 |
| K780-060/2 | 60 | 65 | 40 | 2,4825 |
| K780-060/3 | 60 | 65 | 50 | 2,4825 |
| K780-060/4 | 60 | 65 | 60 | 2,4825 |
| K780-070 | 70 | 75 | 30 | 2,4825 |
| K780-070/1 | 70 | 75 | 40 | 2,4825 |
| K780-070/2 | 70 | 75 | 50 | 2,4825 |
| K780-070/3 | 70 | 75 | 80 | 2,4825 |
| K780-075 | 75 | 80 | 30 | 2,4825 |
| K780-075/1 | 75 | 80 | 40 | 2,4825 |
| K780-080 | 80 | 85 | 30 | 2,465 |
| K780-080/1 | 80 | 85 | 40 | 2,465 |
| K780-085 | 85 | 90 | 30 | 2,465 |
| K780-085/1 | 85 | 90 | 40 | 2,465 |
| K780-090 | 90 | 95 | 30 | 2,465 |
| K780-090/1 | 90 | 95 | 40 | 2,465 |
| K780-095 | 95 | 100 | 30 | 2,465 |
| K780-095/1 | 95 | 100 | 40 | 2,465 |
| K780-095/2 | 95 | 100 | 60 | 2,465 |
| K780-100 | 100 | 105 | 30 | 2,465 |
| K780-100/1 | 100 | 105 | 30 | 2,465 |
| K780-105 | 105 | 110 | 60 | 2,465 |
| K780-115 | 115 | 120 | 35 | 2,465 |
| K780-120 | 120 | 125 | 35 | 2,44 |
| K780-125 | 125 | 130 | 50 | 2,44 |
| K780-140 | 140 | 145 | 40 | 2,44 |
| K780-150 | 150 | 155 | 40 | 2,44 |
| K780-150/1 | 150 | 155 | 50 | 2,44 |
| K780-160 | 160 | 165 | 40 | 2,44 |
| K780-160/1 | 160 | 165 | 80 | 2,44 |
 |
|||||
|

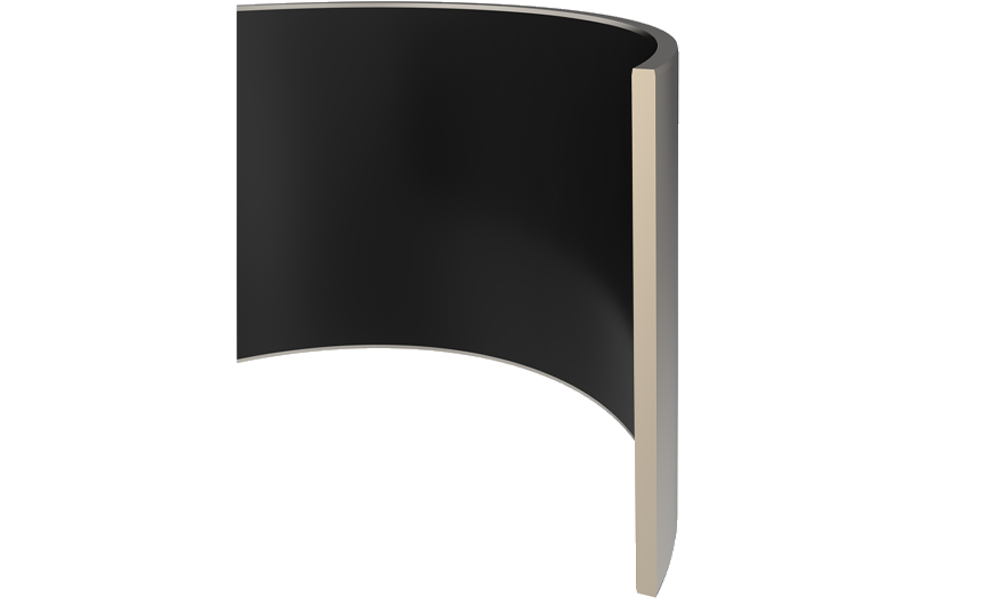

Kastaş K780 bushings used high quality low-carbon steel plate as base , sintered porous bronze as its interlayer and the compound of PTFE as its surface. It offers the property of good self-lubricaiton , low wear , low friction , good sliding characteristics , low noise. PRODUCT ADVANTAGES • Working under oilless or minim oil state condition • Abrasion Resistance • Low fricton coefficient and long service life • Good thermal conductivity and size stability • Forms a transferred film during operation to protect shaft • High load resistance |
|||||
|
| TECHNICAL DATA | |||
| Max. Load | Static Very low speed Rotating oscillating | 250 N/mm² 140 N/mm² 60 N/mm² | |
| Max. PV (dry running) | Short-term operation Continuous operation | 3.6 N/mm².m/s 1.8 N/mm².m/s | |
| Temp. Limit | -195°C~+280°C | ||
| Friction Coefficient | 0.05~0.02 μ | ||
| Max. Speed | Dry Running Hydrodynamic operation | 2 m/s 5 m/s | |
| Thermal conductivity | 42 W(m.k) -¹ | ||
| Coefficient of thermal expansion | 11x10-6 .K- ¹ | ||
 |
|||
