K102 - Wiper
| Kastaş No | d (f8) | D (H8) | S1 (-0/+0,3) | b | c |
|---|---|---|---|---|---|
| K102-045 | 45 | 62 | 8 | 8 | 1 |
| K102-050 | 50 | 62 | 8 | 8 | 1 |
| K102-060 | 60 | 72 | 8 | 8 | 1 |
| K102-070 | 70 | 85 | 8 | 8 | 1 |
| K102-080 | 80 | 95 | 8 | 8 | 1 |
| K102-090 | 90 | 105 | 10 | 10 | 1 |
| K102-100 | 100 | 118 | 8 | 8 | 1 |
 |
||||||||||||||||||||
|

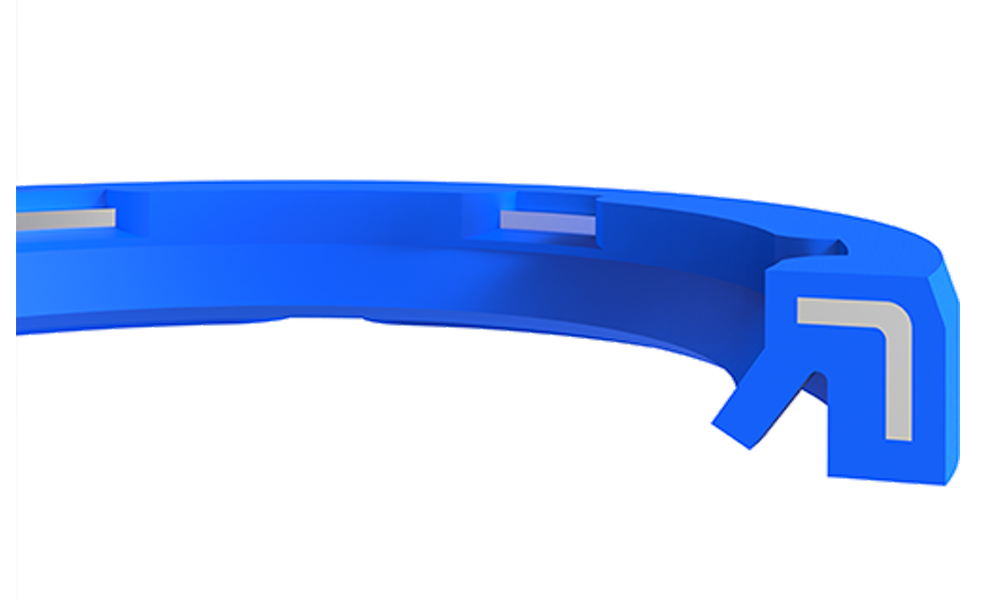

K102 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic systems , avoiding wear and damage to all the internal components including seals. PRODUCT ADVANTAGES APPLICATION |
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface Ød | ≤0.4 μm | ≤3.2 μm |
| Groove Base ØD | ≤1.6 μm | ≤10 μm |
| Groove Flanks S1 | ≤3.2 μm | ≤16 μm |
|
INSTALLATION |
||
