K504 - COMPACT SET
KASTAŞ NO | D(H8) | d(h9) | B(-0/+0,2) | r | n |
---|---|---|---|---|---|
K504 080-066 | 80 | 66 | 16,5 | 0.5 | 3.5 |
K504 100-086 | 100 | 86 | 16,5 | 0.5 | 5 |
K504 110-095 | 110 | 95 | 15,5 | 0.5 | 5 |
K504 120-105 | 120 | 105 | 15,5 | 0.5 | 5 |
K504 125-110 | 125 | 110 | 15,7 | 0.6 | 5 |
K504 130-113 | 130 | 113 | 20,5 | 0.6 | 5 |
K504 140-125 | 140 | 125 | 15,9 | 0.6 | 5 |
K504 150-135 | 150 | 135 | 15,5 | 0.6 | 5 |
K504 160-143 | 160 | 143 | 20 | 0.6 | 5 |
K504 170-150 | 170 | 150 | 15,5 | 0.6 | 5 |
K504 180-163 | 180 | 163 | 20 | 0.6 | 5 |
K504 185-165 | 185 | 165 | 15,5 | 0.6 | 5 |
K504 200-180 | 200 | 180 | 15,5 | 0.6 | 5 |
K504 210-190 | 210 | 190 | 15,5 | 0.6 | 7 |
K504 225-205 | 225 | 205 | 24,5 | 0.6 | 7 |
K504 240-220 | 240 | 220 | 25 | 0.6 | 7 |
K504 250-230 | 250 | 230 | 25,5 | 0.6 | 7 |
K504 320-300 | 320 | 300 | 25,5 | 0.6 | 7 |

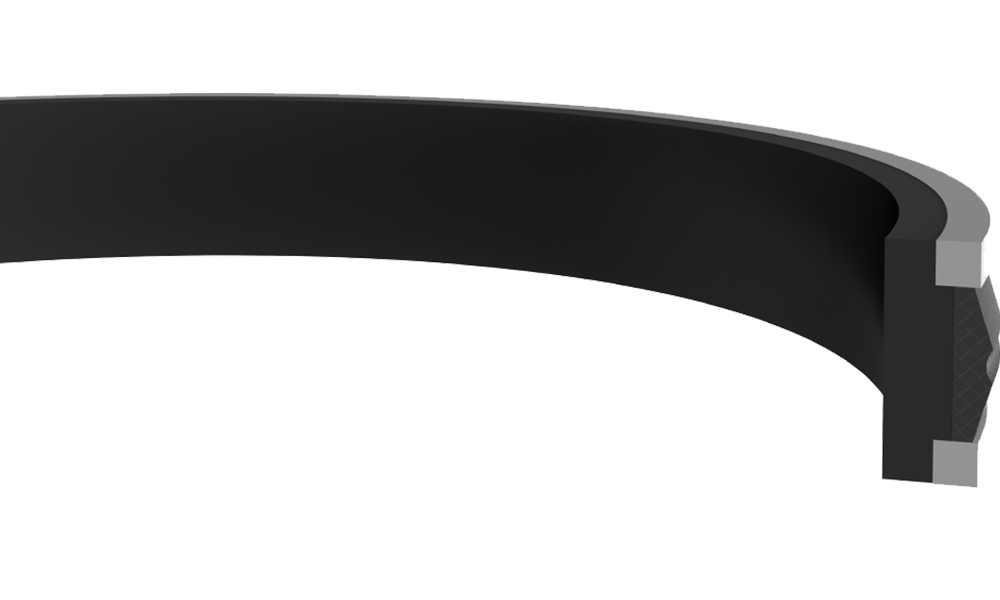

K504 is a three piece double acting compact seal which consists of one fabrik reinforced elastomeric sealing element and two thermoplastic guide back-up rings. PRODUCT ADVANTAGES• Low friction , free of stick-slip • Improved abrasion resistance • Good dynamic and static sealing • Long service life • Reliable solution in water and water based media APPLICATION Mining equipment , iron and steel industry , marine hydraulics and earth moving equipment. |
||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
SURFACE ROUGHNESS | Ra | Rmax | ||||||||||||||||||||||||||
Sliding Surface ØD | ≤0.4 μm | ≤3.2μm | ||||||||||||||||||||||||||
Groove Base Ød | ≤1.6 μm | ≤6.3μm | ||||||||||||||||||||||||||
Groove Flanks B | ≤3.2 μm | ≤16 μm | ||||||||||||||||||||||||||
Note: It is recommended to have 50% to 90% of the working surface material contact area value. | ||||||||||||||||||||||||||||
INSTALLATION K504 profile has been designed to be installed in a closed or open grooves taking the indicated catalogue information into consideration. We recommend having open groove design for dimensions that are smaller than Ø 50mm. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil. |
||||||||||||||||||||||||||||
|
